AA730KIT WIRED REMOTE W CH/COUNTER4MSPIR
Description

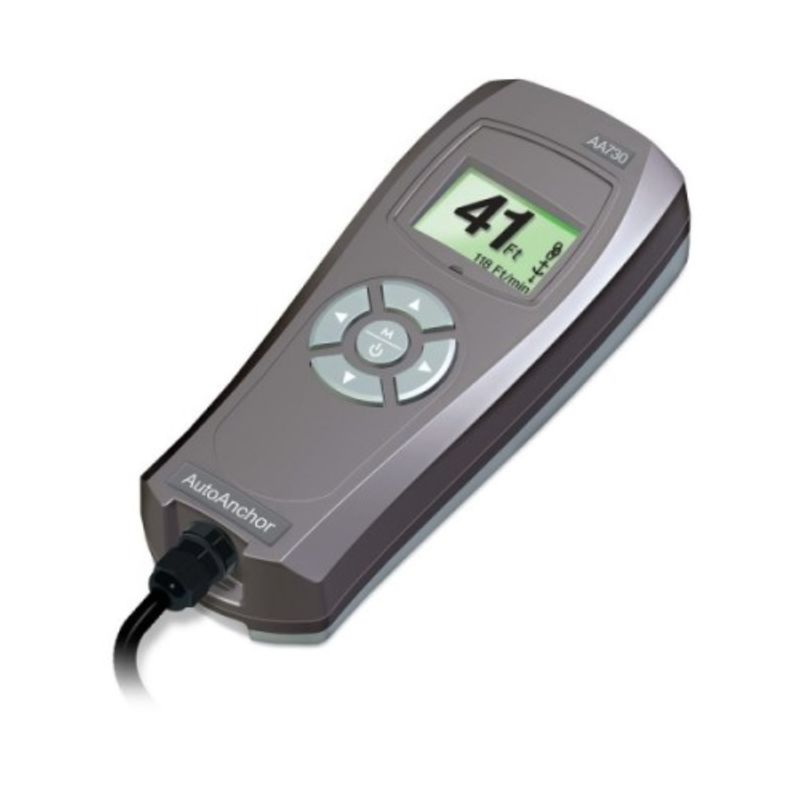

Auto Anchor 730 Kit
Tough waterproof remote control with LCD for marine equipment with chain counter:
* Windlasses * Thrusters * Lights * Anchorwash * Davits * Passerelles *
Kit includes one handheld console unit with cradle, one base station, a deck socket with 2m lead, a socket sealing cap, one sensor, 2 magnets, screws for the cradle and socket, installation and operation instructions.
Features -
4 metres spiral cable
Electrical protection against back-emf
Rubber over-moulding for shock protection and grip
Stowage on cradle
Operation in parallel with all AutoAnchor products eg toggle switches, foot switches or other control equipment
Connect to DC, AC and hydraulic systems
Rugged cable and connectors with:
Moulded plug and socket rated to IP67
2m flying lead from socket for better connectivity
Gold plated contacts on plug and socket to reduce corrosion
Socket sealing cap
Present the length of rode to deploy
Plus Windlass Control with Chain Counter
Counts rope/chain or all-chain rode
AA703 Base StationChoice of feet, metres or fathoms measurement
Logs windlass operating hours for maintenance
Easy calibration
Electronic diagnostics for troubleshooting installation
Auto stop and docking alarm when the anchor is close to docking
Two speed operation
Technical Specifications -
Current Consumption: 50mA
Power Supply: 12/24V DC
Temperature Range: 23°F to 140°F (-5°C to 60°C)
Output Maximum Current Draw: 12V DC: 3.5A 24V DC: 3.5A
Output Minimum Current Draw: 12V DC: 10mA 24V DC: 20mA
When connecting to solid stage switching or other low current windlass drive, a PLC or AC variable frequency drive, a dummy resistor load may be required.
IP Rating: IP67
Outputs: 6
Rode – Chain Only: Stainless or galvanised steel
Rode – Rope and Chain: Must have a minimum of 10ft (3m) of chain. Chain must be galvanised steel. Rope should be a good quality nylon anchor rope. Type 66 or equivalent
EMC/Protection/CE: EN60945
For DC windlasses a dual direction solenoid is required.
